Architecture & data flow
How a recording travels from a device to the clinician's report — and why the long AI step runs in a long-lived container rather than a serverless function.

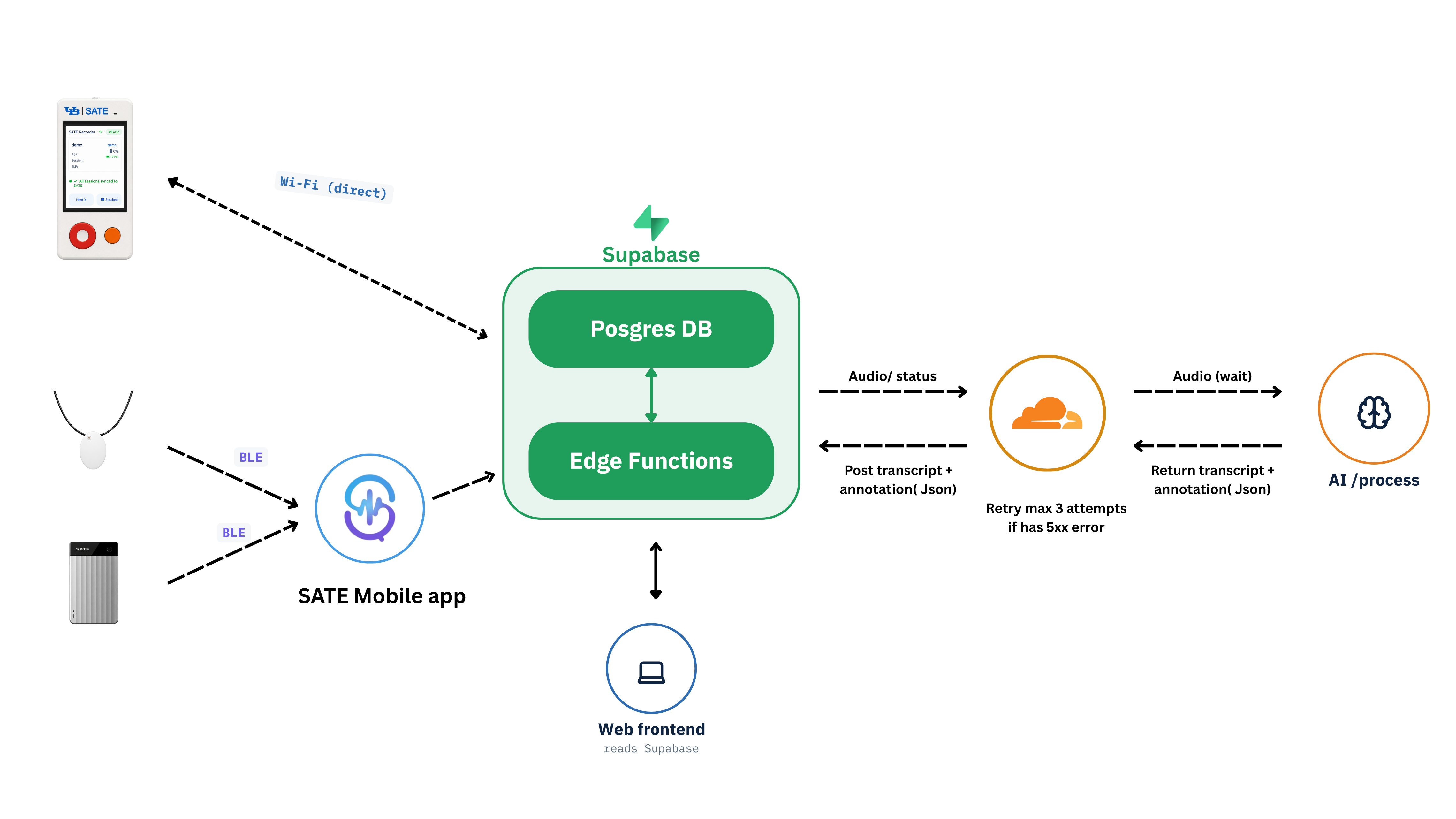

End-to-end: a recording's journey
Who triggers what. The audio never flows through Cloudflare. device-api (the Supabase
edge function) is the only thing devices talk to: it stores the assembled WAV in Storage and
queues the session, then kicks off processing (a fire-and-forget trigger). The long-lived
Cloudflare container is woken by the Worker's /tick endpoint — pinged every minute by
pg_cron and designed to also be poked by device-api on new audio — after which it
claims the queued session and pulls the WAV from Storage itself before holding the AI
call. So the path is edge fn → Cloudflare → Storage: Cloudflare reads the audio out of
Storage; the edge function never streams audio to it, and the device never uploads to
Cloudflare directly.
:::note Upload transport history
Earlier firmware streamed device audio to Supabase over a WebSocket. The current path is
resumable chunked HTTPS (POST /sessions/chunk) — the server reassembles the ~1 MB
slices and byte-verifies before accepting, which survives drops and mid-upload reboots that a
single long-lived socket could not.
:::
Why processing is asynchronous
Supabase edge functions have a hard ~150 s wall-clock limit (not configurable).
A long transcription exceeds it, and the worker is killed mid-fetch before the
try/catch, so the session hangs in processing forever. The fix is a state
machine on sate_device_sessions.status (queued → processing → done | error)
drained by a long-lived Cloudflare Container (cf-processor/) that has no
wall-clock limit and holds the AI call itself.
The status column moves through exactly four states — the container is the only thing
that can hold processing long enough to reach done:
:::warning Never move the AI call back into an edge/Worker fetch Any serverless request (Supabase edge or a plain CF Worker with its ~100 s 524 origin timeout) will kill a long transcription. The long call must live in the container. See Backend pipeline. :::
Capture paths
- Recorder (online): uploads directly over Wi-Fi in ~1 MB chunks; the server reassembles and byte-verifies before accepting.
- Recorder (offline): the mobile app pulls sessions over a BLE bridge and
relays them to
device-api. - Pendant: always via the app — it streams PCM over BLE, the app wraps a WAV
and uploads (
device_serial = pendant-<bleId>).
Storage & data model (summary)
| Bucket / table | Visibility | Holds |
|---|---|---|
device-sessions (Storage) | private (signed URLs) | raw uploaded WAVs |
recordings (Storage) | private (signed URLs) | processed audio for the report |
firmware (Storage) | public | OTA .bin images |
sate_device_sessions (DB) | RLS by user | upload + processing state machine |
recordings (DB) | RLS by user/patient | transcript, analysis, flags |
patients (DB) | RLS by SLP | patient roster |
Full schema and RLS notes: Reference → Data model.
Concurrency notes
- Recorder: connectivity runs on a core-0 FreeRTOS task; GUI + buttons +
recording on core-1. They share the SD/FATFS volume, guarded cooperatively
by a
uiSdBusyflag. See Recorder firmware. - Mobile: three BLE stacks (SATE, Pendant, Plaud) share one
BleManagervia a radio arbiter (src/ble/radio.ts). See Mobile app.
